Product Description

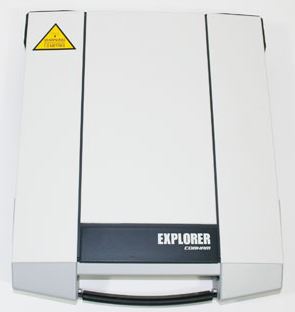

TT-01-403703A-710 COBHAM Thrane Explorer 710 Antenna
Type: Directional patch array, manually adjustable
Polarization: RHCP, Right-hand circular polarization for both tx and rx
Connector Type: TNC-Female
Transceiver: 1626,5 MHz – 1660,5 MHz and 1668 MHz – 1675 MHz
Receiver: 1518 MHz – 1559 MHz
GNSS: GPS and Glonass
EIRP: Nominal: 20.0 dBW (EIRP), Class 1
ANTENNA INTERFACE ON TRANSCEIVER
Connector type: TNC, female
Max. cable length: Typically up to 100 m depending on the cable type
Max. cable loss: Max 20 dB cable loss at 1.5 to 1.7 GHz
Max. DC impedance for cables: Max. 1.4 Ohm DC resistance.
Max. Wind Load: 18 m/s or 59 ft/s (Operational)
Water and Dust: IP-66
Dimensions:
Weight:
