Product Description
STARPAK-52G-IR-DM-GPS-1 Dual-Mode Helix Antenna, IRIDIUM and GPS for Marine, Heavy Vehicles, and Remote buildings
This Kit is designed to provide high performance and significantly exceeds the antenna performance that is included with the handset.
Allows the handset or IRIDIUM and GPS Terminal to be used inside any Vehicle, Vessel or Fixed Building.
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Height: 122.17mm(4.810in)
Diameter: 66mm(2.6in)
Weight: 146g(5.15oz)
Compatible also with all Iridium, and GPS Satellite Products
Overview
STARPAK-52G-IR-DM-GPS-1
Design and Mounting profile: Helix, Flat Bracket, Pipe Mount or Bulkhead
Allows the handset or IRIDIUM and GPS Terminal to be used inside any Vehicle, Vessel or Fixed Building.
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Height: 122.17mm(4.810in)
Diameter: 66mm(2.6in)
Weight: 146g(5.15oz)
Compatible also with all Iridium, and GPS Satellite Products
Tech Specs
Technical Specifications STARPAK-52G-IR-DM-GPS-1
Design and Mounting profile: Helix, Flat Bracket, Pipe Mount or Bulkhead
IRIDIUM ELECTRICAL
FREQUENCY: 1610.0 to 1626.5MHz
RADIATION PATTERN: Hemispherical
POLARIZATION: RHCP
VSWR:< 2.0:1
GAIN (dBic) : Free Space
@ 90deg (Zenith Top): 0.00
@10deg Elevation: 0.40
@20deg Elevation: 1.10
@30deg Elevation: 1.20
@45deg Elevation: 0.70
@70deg Elevation: 0.10
AXIAL RATIO at Zenith: 2dB
3.0db BEAM WIDTH: 190deg
POWER HANDLING: >30Watt
DC GROUNDING: YES(Lightning Protection)
FILTER REJECTION…..
824-894MHz : > 70dB
1610-1626.5MHz : > 67dB
3220-3253MHz : > 29dB
4830-4879.5MHz : > 54dB
L1 GPS ELECTRICAL (L2 GPS Optional)
FREQUENCY: 1575.42 ( /- 12MHz)
RADIATION PATTERN: Hemispherical
POLARIZATION: RHCP
VSWR: < 2.0:1
GAIN (dBic) : Free Space
@ 90deg (Zenith Top): 5.00
@10deg Elevation: -2.30
@20deg Elevation: -0.90
@30deg Elevation: 0.70
@45deg Elevation: 1.90
@70deg Elevation: 4.20
AXIAL RATIO at Zenith: 2dB
3.0db BEAM WIDTH: 90deg
POWER HANDLING: 1Watt
DC GROUNDING: YES(Lightning Protection)
REJECTION@
-50/ 50MHz : -45/-70dB
-100/ 100MHz : -65dB
CONNECTOR

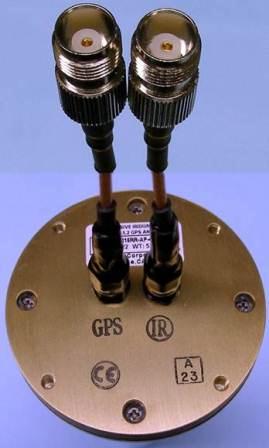

Iridium Satellite: Base Exit SMA-female, GPS: SMA-Female by default
Email your alternate using Connector reference, as follows:
T: TNC, TB: TNC Bulkhead,
S: SMA, SB: SMBR,
B: BNC
M: MCX, MM: MMCX, MMR: MMCX-R
N: N/N Bulkhead
SMC or SSMC or SSMB, SSMA
DIMENSIONS
Height: 122.17mm(4.810in)
Diameter: 66mm(2.6in)
Weight: 146g(5.15oz)
PROPERTIES
Material: 6061-T6 Aluminum Alloy Base, Composite Radome, Impact, Abrasion, UV, Solvent, and Skydrol, Corrosion Resistance and Fire Retardant
Finish: Skydrol Resistant, Polyurethane Resistant Enamel, Base Iridite Per MIL SPEC – C144
COLOURS
Gloss White is supplied by default
Email your alternate using colour reference, as follows:
Gloss White #17925(per USA FED-STD 595B PAINT) : Part #STARPAK-52G-IR-DM-GPS-1(supplied by default)
Lusterless Grey #36320(per USA FED-STD 595B PAINT) : Part #STARPAK-52G-IR-DM-GPS-2
Olive Drab Green #34094(per USA FED-STD 595B PAINT) : Part #STARPAK-52G-IR-DM-GPS-3
Lusterless Black #37038(per USA FED-STD 595B PAINT) : Part #STARPAK-52G-IR-DM-GPS-4
Desert Tan #FB23446 / 33446(FED STD 595 PAINT): Part #STARPAK-52G-IR-DM-GPS-5
Teflon Coated Grey(for Marine/Buoy/Extreme applications): Part #STARPAK-52G-IR-DM-GPS-6
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 70,000ft
Vibration: >30 G’s
Leakage: Hermetically Sealed
DESIGNED TO – NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium Certified product
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-810,and SAEJ1455
