$1,410.00

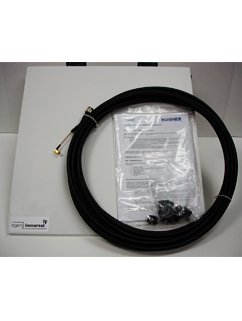

HN-01-9501286-1 Hughes BGAN External Antenna Kit
HN-01-9501286-1 Hughes BGAN External Antenna
This Hughes BGAN Remote Antenna is designed to be permanently installed with the Basic Fixed Mount Kit (HNS part number 3004066-0001), which is NOT included
The Hughes BGAN External Antenna is a fixed solution to use the 9201 terminal indoors.
The eternal antenna is fixed outside and a cable is run from the antenna to the BGAN which can be located safely indoors.
This external antenna only works with the Hughes 9201 BGAN.
Technical Specifications HN-01-9501286-1
• The Hughes BGAN Remote Antenna and its cable assembly are designed for a one-time permanent
installation. If the Remote Antenna is decommissioned, then the RF cable must be replaced with a new
cable before the antenna is reinstalled at the same or a different location.
The cable assembly supplied (10.0m), forms an integral part of the antenna system and is made to a
specific length in order to meet the system specifications.
The cable must not be cut to a shorter length,nor must cables be added to the cable run.
It is essential that only the supplied cable is used.
Third party cables may not be used; their use will
invalidate the warranty of the antenna and may cause system malfunction.
NOTE: The Hughes BGAN Remote Antenna (HNS Part No. 9501286-1) is designed to be permanently installed with the Basic Fixed Mount Kit (HNS part number 3004066-2), which is NOT included
Frequency: 1.5250 to 1.6605GHz
Polarization:
Axial Ratio: 3dB worst case on boresight
Gain: 15.1 dBi Rx, 15.2 dBi Tx Nominal
Beam Width: 22deg(Az), 22deg(El) approx.
Power: Rating 10W
Front to Back: >30 dB
Temperature: Operating -50 to 60C and Storage -50 to 80C
VSWR: <1.5:1
Finish: White
Wind Loading: 160kph(100mph)
Flat panel Antenna connector: N-Female
SMA-Male Right Angle connectors
Dimensions: 500mm(19.69in) x 500mm(19.69in) square, 12.2(0.48in) Thickness
Weight: 1.7kg(3.7lb) excluding bracket/s or cable/s
Supplied Accessories
ADAPTER
1x RF Adapter: SMA-Female to MCX adapter(for connecting the user terminal)
CABLE
1x RF Cable: 10m coaxial cable(10.0mm Dia) terminated one end with a N-Male connector, and permanently connected to at the other end a 3.0mm Dia.cable fly-lead terminated
Cable specs: Overall Length is 10.0m, Insertion loss @ 1.542GHz is 2.0dB
