Overview

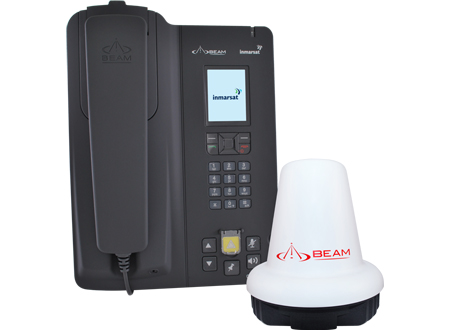

IN-00-OC800 Oceana 800 Marine Hands Free Satellite Telephone System Terminal with ISD710 Active Antenna
DESIGN
. High quality IP54 rated maritime enclosure
. Compact all-in-one design
. Wall or desk mounting options
. Locking bolt to wall mounting
. Dual SIM enclosures
POWER
. 10 – 32V DC Input
. 110/240V AC Plug pack (included)
INTELLIGENT POTS / RJ11 INTERFACE
. Support up to 600m (2000’) of RJ11 cable runs
. Standard Dial, ring & busy tones
. Integrates easily to PABX System
. Support standard corded, cordless and DECT phones
. Auto-dial & speed dials available
VOICE CALLING FEATURES
. RJ11/POTS interface
. In-built phonebook/contacts
. Privacy handset calling
. In-built handsfree speakerphone
. Access from PABX or other corded/cordless handsets
. Bluetooth headsets (not included)
INSTANT MESSAGE AND TRACKING FEATURES
. Supports LeoTRAK-Online and other tracking applications
. Dedicated internal GPS receiver
Tracking
. Periodic location messages
. SMS, SMS to email
. Location message sent upon button press
. Ignition ON/OFF reporting
. Remote location polling via SMS
Instant Message Mode
. Single button press on terminal
. Instant GPS location messages
. Supports external “man down” pendant or button
. Remote clearing of alert via SMS
Tracking / Instant message content includes:
. Message ID#
. Header
. Latitude/Longitude
. Speed
. Direction
OTHER KEY FEATURES
. Colour LCD screen
. Accessible control buttons
. Integrated antenna connections
. Slimline privacy handset
. In-built speakerphone
. Cable routing LHS/TOP/BOTTOM
. Voice, data, SMS
. 12 month warranty

Tech Specs

IN-00-OC800 Oceana 800 Marine Hands Free Satellite Telephone System Terminal with ISD710 Active Antenna
Power Specifications
Average Power Consumption (Active Antenna Connected) with Current @ 15V
Standby: 0.22A, 3.2W
Transmit (RJ11/POTS): 0.58A, 8.7W
Transmit (Speakerphone): 0.53A, 7.9W
Sleep Mode: 5mA, 75mW
Peak Current: 1.7A, 26W
GPS Module (internal)
Channels: 14 tracking, 51 Channel Acquiring
Update Rate: 1Hz
Accuracy: Position 2.5mCEP, Velocity 0.1m/s,
Acquisition TTFF: Timing 300ns
Sensitivity: Cold 29sec, Hot 1sec
Operational Limits: -161 dBm
Dynamics: Altitude 18000m , Velocity 515m/s
Physical Specifications
Dimensions: 241 x 185 x 93mm(9.49 x 7.28 x 3.66in)
Weight: 1.27kg(2.80lb)
Environmental
Operating Range: 20°C to 55°C (4°F to 131°F)
Storage: -30°C to 80°C (-22°F to 176°F)
Humidity: 95%
Transceiver: Inmarsat-4 Satellite, GMR-2 Frequency Bands:
Tx Operating Frequency: 1626.5 – 1660.5 MHz
ISAT Rx Operating Frequency: 1518 – 1565 MHz (Inmarsat)
GPS Rx Operating Frequency: 1565.19 – 1585.65 MHz (GPS)
RF Output Impedance: 50 Ohms
Carrier frequencies: Channel 0 = 1626.525 MHz, Channel 169 = 1660.475 MHz
TX Modulation: GMSK
RX Modulation: OQPSK
Instant Message
Instant Message: Single button press
1 x Alarm Loop: Bare wire – “Normally Closed” Loop IN to OUT
Track: Inbuilt – single key press
Connectors / Interfaces
POTS/RJ11: RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance
Inmarsat Antenna: TNC-Female
GPS Antenna: SMA-Female
10-32V DC: 4-way microFit (AC/DC adaptor, or DC lead)
Privacy Handset Port: RJ9 connector
Configuration /Data: USB Mini B
Speakerphone: In-built speaker/microphone
Certifications
Inmarsat Type Approval
FCC
CE Compliance
Electrical Safety
RoHS
Industry Canada
C-Tick
IP54 Rating
5 = Protected against dust limited ingress (no harmful deposits).
4 = Protection against water sprayed from all directions – limited ingress permitted.

Requires Optional ISD Active Antenna Kit – NOT included – as below part#
. ISD932 6m cable kit (Active)
. ISD933 13m cable kit (Active)
. ISD934 18m cable kit (Active)
. ISD935 31m cable kit (Active)
. ISD938 40m cable kit (Active)
. ISD942 50m cable kit (Active)
. ISD943 60m cable kit (Active)
. ISD944 70m cable kit (Active)
. ISD945 80m cable kit (Active)
. ISD946 90m cable kit (Active)
. ISD947 100m Cable Kit (Active)
