AV-00-SATFB250
Satlink 250 FB FleetBroadband Terminal Features and Solutions
► Standard IP data: Always-on IP data service up to 284kbps for office applications such as email and internet access, real-time electronic charts and weather reporting.
► Streaming IP: Guaranteed rates up to 128kbps are available on demand for live applications such as video conferencing and database synchronisation.
► Satellite telephony: Access up to nine additional telephone lines from a single FB250 terminal with FleetBroadband Multi-voice. Make clear phone calls to terrestrial and mobile networks, as well as other satellite terminals, anytime.
►SMS: Send and receive SMS text messages to and from other FleetBroadband terminals and land-based cellular networks through your PC.
► Enhanced voice services: Voicemail and other enhanced call management options are available, including caller identification, caller barring and call forwarding
► Emergency calling: Our 505 Emergency Calling facility puts vessels directly in contact with a maritime rescue co-ordination centre (MRCC) free of charge
► Fax: FleetBroadband 250 provides a circuit-switched data connection for legacy applications such as Group 3 and 4fax.
► GSM calls: GSM over FleetBroadband 250 enables users to make and receive calls and send and receive SMS texts using the pre-paid SIM in their own mobile phone
► Global coverage: FleetBroadband is accessible globally, except in the extreme polar regions.

HANDSET
 Configuration setting
 Phone book access
 Call log function
 SMS Messaging
 5-way menu navigation switch for user-friendly menu operation
 Hands free operation via plug-in headset
 Supports multiple languages (English, Spanish)
SYSTEM
 Simultaneous voice and data communication over FleetBroadband
 Full duplex, single or multi-user, up to 284 kbps
 Support for streaming IP at: 32, 64, 128 kbps
 Standard Voice (AMBE 2, 4.0 kbps)
 Fax/High Quality Voice (64kbps, A-law PCM)
 4 LAN ports [with 2 ports supporting Power over Ethernet (PoE)] for computers, routers, access points, IP handsets etc.
 2 Standard RJ11 Phone/Fax ports for standard phones, fax machines or analog modems
 Expansion slot (supporting 1 voice port and 1 LAN port)
 Built-in Web Console allowing you to manage your phone book, messages and calls, and customize the terminal to your specific needs
 Input power: 10.5 V – 32 V DC (14 A – 5.5 A)
 CE certified
 FCC certified

Tech Specs

SL-00-SATFB250 Satlink FB250 FleetBroadband Satellite Terminal
Manufacturer: Satlink S.L.Alcobendas (Madrid) Spain www.satlink.es
ROUTER
LAN/Ethernet: 4 x 10Base-T Ethernet Ports including 2 Power over Ethernet (PoE)
LAN/Standard: IEEE 802.3 10Base-T Ethernet
LAN/Network Protocols: TCP/IP, NAT, PAT, HTTP, DHCP Server, MAC address permission/rejection
LAN/Cabling & onnector: RJ45 / Cat. 5, UTP, 100 meters max
LAN/LED Indicator: Link/Act & Full Duplex/Collision
WAN/BGAN: Inmarsat C9 284 kbps (Uplink) / 284 kbps (Downlink)
WAN/BGAN: Inmarsat C9 284 kbps (Uplink) / 284 kbps (Downlink)
WAN/BGAN Connection type: Standard background, Streaming 128 kbps, 64 kbps or 32 kbps
WAN/BGAN Connections:
1 x Standard background
1 x 128 kbps streaming
2 x 64 kbps streaming
4 x 32 kbps streaming
1 x 64 kbps and 2 x 32 kbps simultaneously

BDU
Weight 2.6kg
Dimension: 314.7 x 295 x 59.4 mm
Temperature: Storage -40°C to 80°C.
Operational -25°C to 55°C
Humidity: 95% at temperature of 40°C (non-condensing)
Power: 12VDC /-10% to 24VDC /-30% ( 10.8VDC – 31.2VDC).
Antenna connector: N-Type female
External phone interface: 1 x RJ11 for 2-wire handset (TBR-38 ETSI standard)
External fax interface: 1 x RJ11 for G3 Fax, Modem following ITU-T V-Series Recommendations or 64 kbps PCM voice.
Expansion Slot (Internal): 1 x Analog (2-wire phone interface)
1 x LAN Interface and power supply of 6VDC, 0.5A.
Expansion Slot dimension: Approx. 93 x 76 x 17 mm
LED Indicator: Terminal / Power, Network Status, ADU/GPS, Call/Message
NMEA: RS232 port with NMEA183 output RMC and ZDA
Voice: Standard voice quality 4kbps AMBE 2
High quality voice 3.1 KHz Audio
BDU Power consumption: 23W (Total power consumption ADU BUD Handset but without consideration of expansion slot & PoE = 65.5W)
Protection class: IP20
Receiver operational tuning range 1525.0 – 1559.0 MHz, in steps of 1.25 kHz
Transmitter operational tuning range 1626.5 – 1660.5 MHz, in steps of 1.25 kHz

HANDSET
Display: 2”, 220 x 176 pixel TFT, 262K Color LCD
Weight: Approx. 80grams
Dimension: 140 x 55 x 20 mm
Temperature: Storage -30°C to 70°C.
Operational -20°C to 55°C
Protection class: IP66
Handset Power Consumption: 2.5W

SYSTEM
System Certification: Inmarsat TA, GMPCS, FCC regulatory, R&TTE / CE Marking, RoHS compliance
EIRP EIRP is specified at 15.1dBW by SDM Vol.5 Ch4 section 2.3.1
G/T G/T is specified at -15.5 dB/K in SDM, Vol. 5 ch4 section 2.4.1
Antenna
Recommended Antenna Cable: Cable loss from 0 to 12 dB at 1.6 GHz
GPS: Built-in antenna and 16 channel GPS engine
The Beam width of the antenna: /- 20Deg on Azimuth Axis (Elevation is 0 deg) , /- 30deg on Elevation axis (horizon, Elevation is 90deg) , both based on -3dB Gain from G max for both TX and RX band
ADU Power consumption: 40W
Protection class: IP55 / Breathing design
Weight: 3.8kg
Dimension: H277mm x D319.5mm x R59mm
Temperature: Storage -40°C to 80°C.
Operational -25°C to 55°C
Humidity: Up to 95% @ 40°C
Vibration / Random Vibration:
1.05 Grms in each of three mutually perpendicular axes with the following spectral density
Operational: 5-20 Hz………….0.02G²/Hz, 20-150 Hz……….-3dB/octave
Vibration / Survival:
Random vibration of 1.7g rms for a period of two hours in each of three mutually perpendicular axes (six hours total). 1.70 Grms with the following spectral density:
5-20 Hz………….0.05G²/Hz
20-150 Hz……….-3dB/octave
Vibration / Sinusoidal Frequency Vibration (IEC60945)
2Hz to 5Hz and up to 13,2 Hz with excursion of ±1mm ±10%
(7m/s² maximum acceleration at 13,2Hz)
Above 13,2 Hz and up to 100Hz with a constant maximum acceleration of 7m/s²
(For further details please consult standard IEC60945)
Vibration / Shock:
20g 11ms Half sine
2 shocks in each of three mutually perpendicular axes (Six in total).
SHIP MOTION MINIMUM
Motion: Amplitude
Roll 30º @ 8 sec
Pitch 10º @ 6s
Yaw 8º @ 50 s
Turning Rate /- 6 deg/s @ 1 deg/s2
Maximum induced acceleration for Above Deck Equipment:
Motion: Amplitude:
Roll 0.5 g tangential
Pitch 0.5 g tangential
Yaw 0.2 g tangential
Surge 0.2 g
Sway 0.2 g
Heave 0.5 g
SHIPPING
Sizes and weights:

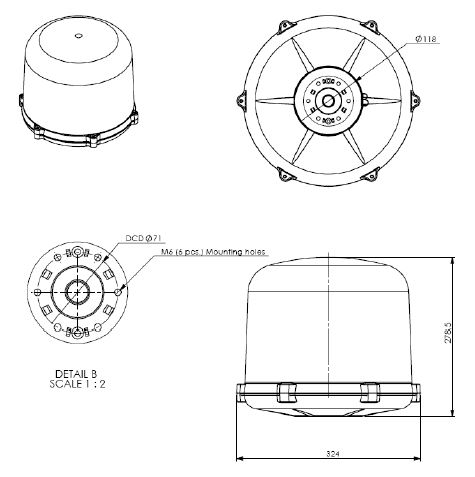

ADU Above-deck unit: Height 27.7cm, diameter 31.9cm (3.8kg)
BDU Below-deck unit: 31.5 x 29.5 x 5.9cm (2.6kg)
Handset: 14.5 x 6.5 x 2.5cm (180g)
