Product Description

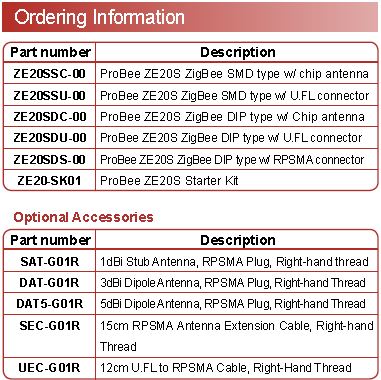

ZE20SSU-00 SENA ZigBee Probee ZS20S OEM Module, 100pcs Bulk pack, SMD type with U.FL Connector
The ProBee-ZE20S is short range ZigBee OEM SMD/DIP module with integrated ZigBee core and radio/antenna circuits together with high level software interface so that OEM manufacturers can easily and cost effectively integrate ZigBee functionality into their target products in timely manner.
The ZE20S OEM module is designed to meet specific requirements of low cost and low power wireless applications such as Home Automation,Smart Energy, Health care, Building Automation and Telecom Services by adopting the ZigBee technology.
The ZE20S is based on the Ember EM357 ZigBee core certified by the ZigBee alliance based on ZigBee 2007 and ZigBee Pro stack.
The ZE20S can transfer data at up to 250 kbps and reach up to 300m(0.19 miles) outdoor line-of-sight.
Applications
· Advanced Metering Infrastructure
· Home Area Networks (HAN)
· Neighborhood Area Networks (NAN)
· Home Automation
· Advanced Lighting, Entertainment, and Climate Control Systems
· Service-based Monitoring, Security, and Awareness Systems
· Commercial Building Automation
· Climate & Lighting Control Systems
· Industrial and Domestic Applications
Despite of its cost effective and low power consumptions, the ZE20S provides high performance and robust data transfer capability for wide range of applications.
Overview
ZE20S series ProBee OEM embedded modules
Supports ZigBee 2007/ ZigBee Pro Stack
Integrated 2.4GHz, IEEE 802.15.4-2003 compliant coprocessor
Short range ZigBee OEM SMD/DIP module
Various antenna options according to users Requirement upto 300m (0.19 miles) with optional 5dBi dipole antenna
UART Signals Support
6 Analog Inputs, 17 Digital Inputs/Outputs
Supports remote management features wirelessly such as firmware upgrade and system configuration by using modem AT command set
Supports ZigBee Home Automation profile including combined interface, door lock and light ON/OFF
Easy to use Windows configuration tool available
Tech Specs
ZE20S series ProBee OEM embedded modules
RF Characteristics:
Based on Ember EM357
Interface Immunity: DSSS
Transmit Power: 8dBm (Max.)
Receiver Sensitivity: Typ. -100dBm/ Max. -102dBm
RF Data Rate: 250 kbps
Working Distance: Up to 150m with default antenna
Various Antenna/Connector Options: Dipole 1/3/5dBi, U.FL, RPSMA, Chip
Channels: 16
Channel Spacing: 5 MHz
ZigBee Network:
Network topology: Mesh, Star and Tree
Stack profile: ZigBee 2007/ZigBee Pro
Network addressing: Channel, PAN ID, EPID
ZigBee Data Transmission:
Network Layer security with one Trust Center for efficient operation
128 bit AES encryption algorithms
Strong, NIST-approved security
Interfaces:
Serial Data Interface: 1 UART
Serial Data Rate: 1 Mbps
ADC: 6 Inputs
17 Digital Inputs/Outputs
Device Management and Configuration:
Configuration Method: AT Commands, ProBee Manager
Remote Configuration:
Remote Firmware Upgrade using Pass-thru method
Supports rich neighborhood device scanning and monitoring using AT commands
Power Requirements:
Supply Voltage: 2.1~3.6 VDC
TX Current: 33mA/Max.45mA (Boost)
RX Current: 28mA/Max.31mA (Boost)
Sleep Current: <1uA@25ËšC
Physical Properties and Others:
SMD type: 33 pin, half-thought hole, 2mn pitch
DIP type: 26 pin, 2 mm pitch-pin Header, 13x2
SMD type Size: 31.6 x 18.6
DIP type Size: 32.8 x 21.0
Operating Temperature: -40ËšC to 85ËšC
Certification: FCC, CE, TELEC, KCC
Warranty: 1-year limited warranty
