Product Description

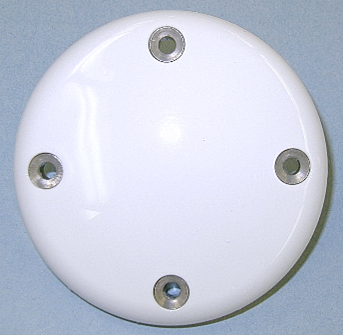

STARPAK-S3-TSO-IR-A1 FAA Approved TSO Antenna, IRIDIUM AERO Patch
Mounting profile: Bulkhead.
This antenna is designed for maximum Aeronautical low profile performance.
Enables the Satellite Telephone to be used inside any Aircraft.
BASICS
Mounting: Flat fixed Mount, with gasket and 4x 10-32 Stainless Steel Mounting Screws Supplied
Antenna Size: 88.90mm(3.50in) Dia x 14.81mm(0.583in) High
Antenna Weight: 146g(5.15oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-S3-TSO-IR-A1(Supplied By Default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-S3-TSO-IR-A2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-S3-TSO-IR-A3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-S3-TSO-IR-A4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-S3-TSO-IR-A5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 21.336m(70,000ft)
Vibration: > 30 G’s
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
FAA TSO-C144
DO-160D, DO-228, MIL-C-5541, MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
REQUIRES CABLE
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
Includes individual TSO / FAA Certification Documents
Overview
STARPAK-S3-TSO-IR-A1 FAA Approved TSO Antenna, IRIDIUM AERO Patch
Mounting profile: Bulkhead.
This antenna is designed for maximum Aeronautical low profile performance.
Enables the Satellite Telephone to be used inside any Aircraft.
BASICS
Manufactured in USA
Iridium certified product
Colours: Gloss White supplied by default, also available in MIL-SPEC Lusterless Black and Grey, Olive Drab Green, and Desert Tan
Includes individual TSO / FAA Certification Documents
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
Tech Specs
STARPAK-S3-TSO-IR-A1 FAA Approved TSO Antenna, IRIDIUM AERO Patch
Mounting profile: Bulkhead.
BASICS

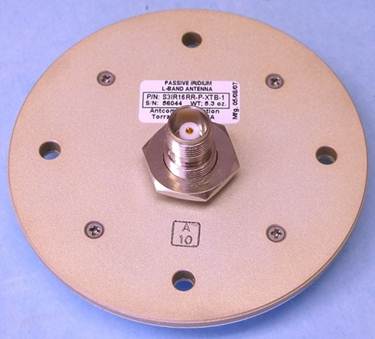

Connector: Base Exit, TNC-Male
Mounting: Flat fixed Mount, with gasket and 4x 10-32 Stainless Steel Mounting Screws Supplied
Antenna Size: 88.90mm(3.50in) Dia x 14.81mm(0.583in) High
Antenna Weight: 146g(5.15oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-S3-TSO-IR-A1(Supplied By Default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-S3-TSO-IR-A2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-S3-TSO-IR-A3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-S3-TSO-IR-A4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-S3-TSO-IR-A5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Altitude: 21.336m(70,000ft)
Vibration: > 30 G’s
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Iridium certified product
FAA TSO-C144
DO-160D, DO-228, MIL-C-5541, MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
REQUIRES CABLE
Compatible with all Iridium Satellite Products and all other 3rd party suppliers
Includes individual TSO / FAA Certification Documents
