Product Description
STARPAK-G7-GMNSS-1

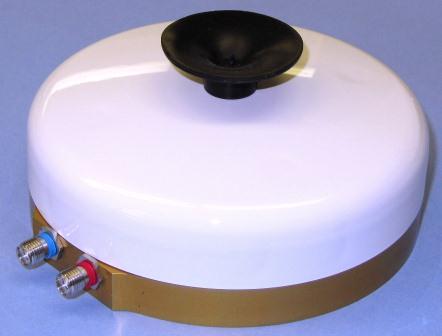

Starpakâ„¢ Extreme External Antenna Simply connects to your Iridium SatPhone(requires cable) – DOES NOT REQUIRE ANY DOCKING STATION INTERFACE
Satellite Network Access: Iridium GPS (as required for SBD, Location, Tracking. OH&S etc)
Applications and Benefits
Glass Mount conveniently pops onto any surface for fast deployment
The antenna can be magnetically mounted onto the roof and is ideal for use on cars or sensitive surfaces.
Ideal for fast mounting on Land Vehicles, Buses, Heavy Equipment, Marine, and any Remote Fixed Building.
Flexible, User Friendly, Cost effective, High Performance antenna solution
Mounting Profile
Glass Mount suction cap securely holds antenna
Magnetic Base with 8x Hi-power recessed magnets for maximum hold on any clean metal surface.
Does not require any ground plane.
Low profile.
Includes protective neoprene gasket(adhesive one side) to protect sensitive painted surfaces.
Comes with 4x 6-32 1/4in Mounting bolts for fixing base, compatible with optional mounting kit
1x Iridium Cable Adapter SMA-Female to TNC-Male is included
NO Cables Included
Available Colours
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-G7-GMNSS-1 (supplied by default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-G7-GMNSS-2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-G7-GMNSS-3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-G7-GMNSS-4
Lusterless Desert Tan #FS 23446 or 33446(per USA FED-STD 595B) : Part# STARPAK-G7-GMNSS-5
CABLE ORDERING GUIDE
2.4m(95in) LENGTH for personal Plug & Go Travel, or in-vehicle use:
SAT ONLY Part# STARPAK-CBL-95-MST(SMA-M>TNC-M connectors)
SAT GPS Part#: STARPAK-G7-CBL-KIT-95-MSS, is a twin moulded RG174 micro cable
3.0m(118in) LENGTH for short cable runs, permanent installations:
SAT ONLY: Part# STARPAK-CBL-118-MST(SMA-M>TNC-M connectors)
SAT GPS Part#: STARPAK-G7-CBL-KIT-118-MSS, is a two-piece cable kit
6.0m(236in) LENGTH for longer cable runs, permanent installations:
SAT ONLY order Part# STARPAK-CBL-236-MST(SMA-M>TNC-M connectors)
SAT GPS order Part#: STARPAK-G7-CBL-KIT-236-MSS(SMA-M>SMA-M connectors), is a two-piece cable kit
Additional Extended lengths are available.
