Product Description

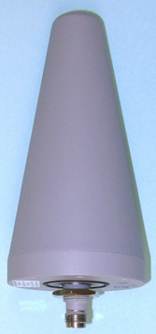

STARPAK-BINL-XT-1-FBM Ruggedized helix Antenna, GPS for Marine and Harsh Environments
Mounting profile: Helix, FBM(Flat Bracket Mount)
Includes Mounting Kit: MTR-2 Flat Bracket Mount with Pipe U Bolts
Allows the GPS Device or Terminal to be used inside any Vehicle, Vessel or Fixed Building with Mast, or raised mounting above obstructions
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Height: 133mm(5.3in)
Diameter: 66mm(2.6in)
Weight: 283g(10oz)
Compatible also with all GPS Satellite Products
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Teflon Coated Grey(for Marines/Buoy/Extreme applications): Part #STARPAK-BINL-XT-U-FBM
Gloss White #17925(per USA FED-STD 595B PAINT) : Part #STARPAK-BINL-XT-1-FBM(Supplied by Default)
Lusterless Grey #36320(per USA FED-STD 595B PAINT) : Part #STARPAK-BINL-XT-2-FBM
Olive Drab Green #34094(per USA FED-STD 595B PAINT) : Part #STARPAK-BINL-XT-3-FBM
Lusterless Black #37038(per USA FED-STD 595B PAINT) : Part #STARPAK-BINL-XT-4-FBM
Desert Tan #FB23446 / 33446(FED STD 595 PAINT): Part #STARPAK-BINL-XT-5-FBM
Overview
STARPAK-BINL-XT-1-FBM
Mounting profile: FBM(Flat Bracket Mount)
Includes Mounting Kit: MTR-2 Flat Bracket Mount with Pipe U Bolts
Allows the handset or GPS Terminal to be used inside any Vehicle, Vessel or Fixed Building with Mast, or raised mounting above obstructions
Helix design compensates for Angled Tilt, Sway and Rocking motion environments.
Height: 133mm(5.3in)
Diameter: 66mm(2.6in)
Weight: 283g(10oz)
Compatible also with all GPS Satellite Products
Tech Specs
STARPAK-BINL-XT-1-FBM Technical Specifications
Mounting profile: Helix, FBM(Flat Bracket Mount)
Includes Mounting Kit: MTR-2 Flat Bracket Mount with Pipe U Bolts
ELECTRICAL
FULL SPECS AVAILABLE UPON REQUEST incl. Multi Frequency, Beam Width, and Elevation Gain
GPS Specs:: L1
Axial Ratio: 1(db) to 3(db)
Radiation Pattern: Hemispherical
Polarization: RHCP
VSWR: <2.0:1
DC Grounding: YES(Lightning Protection)
LNA OPTION(for GNSS or GNSS/Rx only versions)
LNA Gain: 33dB
LNA Noise figure: 3.0dB
LNA P1dB out: 13dBm
LNA DC Power: (2.5 to 24)V / <50mA
Power Handling for Passive: 10W or LNA ACTIVE: 1 Watt CW
CONNECTOR
GPS Satellite: Base Exit TNC-Female by default
Email your alternate using Connector reference, as follows:
T: TNC, TB: TNC Bulkhead,
S: SMA, SB: SMBR,
B: BNC
M: MCX, MM: MMCX, MMR: MMCX-R
N: N/N Bulkhead
SMC or SSMC or SSMB, SSMA
DIMENSIONS
Height: 133mm(5.3in)
Diameter: 66mm(2.6in)
Weight: 283g(10oz)
PROPERTIES
Material: 6061-T6 Aluminum Alloy Base, Ruggedized Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol, Corrosion Resistance and Fire Retardant
Finish: Hermetically Sealed
COLOURS
Gloss White is supplied by default
Email your alternate using colour reference, as follows:
Teflon Coated Grey(for Marines/Buoy/Extreme applications): Part #STARPAK-BINL-XT-U-FBM
Gloss White #17925(per USA FED-STD 595B PAINT) : Part #STARPAK-BINL-XT-1-FBM(Supplied by Default)
Lusterless Grey #36320(per USA FED-STD 595B PAINT) : Part #STARPAK-BINL-XT-2-FBM
Olive Drab Green #34094(per USA FED-STD 595B PAINT) : Part #STARPAK-BINL-XT-3-FBM
Lusterless Black #37038(per USA FED-STD 595B PAINT) : Part #STARPAK-BINL-XT-4-FBM
Desert Tan #FB23446 / 33446(FED STD 595 PAINT): Part #STARPAK-BINL-XT-5-FBM
ENVIRONMENTAL
Temperature: -70degC to 90degC (-95degF to 194degF)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-461E/F,and SAEJ1455
ACCEPTANCE TEST PROCEDURE
ATP-GPS-L1, L2-100
