Tech Specs

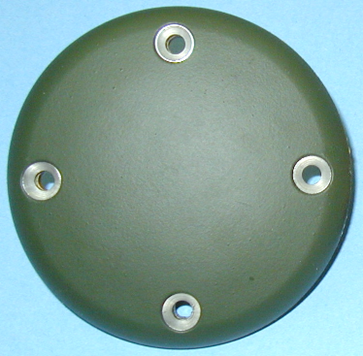

STARPAK-3GN-XT-1
Extreme Antenna for Iridium
MOUNTING PROFILE
Does not require ground plane.
Aerodynamic Low profile.
Includes gasket to hermetically and permanently seal surfaces.
Includes 4x mounting bolts to secure antenna base.
Mechanical
Diameter: 88.90mm(3.50in)
Height: 21.23mm(0.826in)
Weight: 238g(8.3oz)
Material: 6061-T6 Aluminum Alloy base, Composite Radome, Impact, Abrasion, UV, Solvent, and Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel Base Iridite PER/ MIL-C-5441F
Environmental
Extreme Low to very High Temperature Operating Range -55° to 85°C (-67° to 185°F)
Altitude: 21.336m(70,000ft)
Vibration: 30 G’s
Leakage: Hermetically Sealed
IRIDIUM TECHNICAL SPECIFICATIONS
Frequency: 1609 – 1626MHz
Radiation Pattern: Hemispherical
VSWR: <2.0:1 Impedance: 50ohms Gain(bBlc) ……………………..Free Space…-…4ft G.P. @ 90° (ZENITH)…………. 3.0…-….-0.5 @ 10°………………………..-4.5..-…..-4.0 @ 20°………………………..-3.3..-…..-1.2 @ 30°………………………..-1.5..-…..-0.3 @ 60-90°………………..>. 1.8..-..>-1.3
BEAM WIDTH(3dB)……85Deg.-.140Deg
Axial Ratio: 3.0dB
Lightning Protection: DC Grounding
Network, USA Federal, and Military Specifications
Manufactured in USA
Compatible with the Iridium Satellite Networks.
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
MANUFACTURER COMPLIANCE
1) ISO 9001-2008: Registered through SGS
2) TSO C-144: Registered through FAA
3) Environmental: TCA/DO-160D, TSO C144
4) Lightning: DO-160F, Direct Effects, Section 23
5) Electrical: TSO C144, RTCA/DO-228/DO-254, Mil-STD-461F
6) CE: EMC Directive 89/336/EEC European Union) & 47CFR, Part 15, Subpart B (FCC)
7) EMC.Emission: EUROPEAN STANDARD EN 55022: 2006 / UNITED STATES STANDARD 47 CFR PART 15, SUBPART B
8) Immunity: EUROPEAN STANDARD EN 55024: 1998, Amendment A2: 2003
9) Pick/Place, Soldering, Circuit Boards: IPC JSTD-001D, IPC-A-610D, ESD-STD-20.20, JESD-625a, IPC-A-610C Class 3
10) Printed Circuit Board (PCB): IPC-A-600G.
11) Connectors/Adapters/Cables: MIL-PRF-39012/55339, IPC JSTD-001D
12) Stainless Steel Material for Screws: DFARS 252-225-7014/DFARS 225.872-1, and MS Standards.
13) Aluminum Material: A16061-T6 per ASTM-B-221.
14) Chem Film: Mil-C-5541F Type I Class 1A for Yellow, Type II Class 1A for Clear.
15) Black Anodize: MIL-A-8625F Type II Class II.
16) REACH Compliance: SVHC Candidate List Published by European Chemical Agency (ECHA) on Oct-28-2008 Regarding Regulation (EC) No 1907/2006 Concerning REACH
17) CAGE Code: 3CVE1; ECCN: 5A991.b.4; HTS: 8529104000
18) Country of Origin: USA.
These commodities and technology are from the United States and exportable in accordance with the export
Administration regulations. Diversion contrary to U.S. law is prohibited.
