Product Description
STARPAK-2GNL-MNS-1 Antenna, GPS Mini-Magnetic Patch

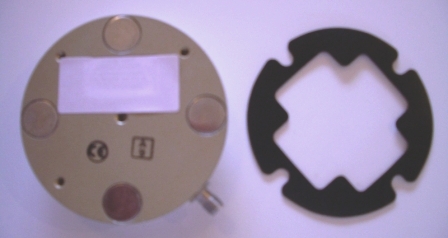

Mounting profile: Hi-Strength Magnetic for user friendly mobile fast deployment and general travel use.
This antenna is designed to provide higher performance Low Profile GPS access.
Enables the GPS Device to be used inside any Vehicle or Vessel.
The antenna can be magnetically mounted onto the roof and is ideal for use on cars or sensitive surfaces where it is not desirable to have a permanently mounted antenna and a low aspect profile is needed.
BASICS
Antenna Size: 66.04mm(2.60in)Dia x 14.81mm(0.583in) Thick
Antenna Weight: 146g(5.5oz).
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-2GNL-MNS-1 (supplied by default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-2GNL-MNS-2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-2GNL-MNS-3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-2GNL-MNS-4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-2GNL-MNS-5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Wind Speed: 220kph(135mph)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
REQUIRES CABLE
Compatible with all L1 GPS Satellite Products
Overview
STARPAK-2GN-GPS-1
Mounting profile: Hi-Strength Magnetic for user friendly mobile Portable use..
This antenna is designed to provide higher performance than the antenna included with the Device.
Enables the GPS Device Satellite to be used inside any Vehicle or Vessel.
The antenna can be magnetically mounted onto the roof and is ideal for use on cars or sensitive surfaces where it is not desirable to have a permanently mounted antenna and a low aspect profile is needed.
Antenna Size: 66.04mm(2.60in)Dia x 14.81mm(0.583in) Thick
Antenna Weight: 146g(5.5oz).
Compatible with all L1 GPS Satellite Products
Tech Specs
STARPAK-2GN-GPS-1
ELECTRICAL
FULL SPECS AVAILABLE UPON REQUEST incl. Multi Frequency, and Elevation Gain
Axial Ratio: 3db
Radiation Pattern: Hemispherical
Polarization: RHCP
VSWR: <2.0:1
Impedance: 50 Ohms
DC Grounding: YES(Lightning Protection)
ANTENNA
Antenna Size: 66.04mm(2.60in)Dia x 14.81mm(0.583in) Thick
Antenna Weight: 146g(5.5oz).
CONNECTOR
Cable is Terminated with a SMA-Female Connector by default
Email your required alternate Connector using the reference, as follows:
T: TNC, TB: TNC-Bulkhead,
S: SMA,
P: PINS
B: BNC
M: MCX, MM: MMCX, MMR: MMCX-R
N: N/N, NB: N-Bulkhead
SMC or SSMC or SSMB, SSMA
PROPERTIES
Material: 6061-T6 Aluminum Alloy base, Composite Radome
Features: Impact, Abrasion, UV, Solvent, and Skydrol Resistance, Fire Retardant
Finish: Skydrol Resistant Polyurethane Enamel base Iridite PER/ MIL-C-5441
COLOURS
Gloss White is supplied by default
Email your required alternate colour using the reference, as follows:
Gloss White #17925(per USA FED-STD 595B) : Part# STARPAK-2GNL-MNS-1 (supplied by default)
Lusterless Grey #36320(per USA FED-STD 595B) : Part# STARPAK-2GNL-MNS-2
Olive Drab Green #34031(per USA FED-STD 595B) : Part# STARPAK-2GNL-MNS-3
Lusterless Black #37038(per USA FED-STD 595B) : Part# STARPAK-2GNL-MNS-4
Desert Tan #XXXXX(per USA FED-STD 595B) : Part# STARPAK-2GNL-MNS-5
ENVIRONMENTAL
Temperature: -55degC to 85degC (-67degF to 185degF)
Wind Speed: 220kph(135mph)
Leakage: Hermetically Sealed
NETWORK, FEDERAL & MILITARY SPECIFICATIONS
Manufactured in USA
Compatible with all L1 GPS Devices
DO-160D, DO-228, MIL-C-5541
MIL-E-5400, MIL-I-45208A, MIL-STD-810 and SAEJ1455
