Product Description
SM201226-DXX Skywave IDP-800 Battery Terminal, Integrated Antenna, GPS/GLONASS, Batteries included
IDP-800 is the first low-profile satellite communications terminal with an integrated battery compartment that uses the two-way IsatData Pro satellite data service for remotely
tracking and managing fixed and mobile assets anytime, anywhere.
The IDP-800 can also be purchased with optional remote antenna.
Fully customizable and environmentally sealed, IsatData Pro terminals are specifically designed to provide visibility and communications with people and equipment even in the world’s harshest environments.
IsatData Pro offers enhanced reliability and the ability to deliver up to 37 times more data in seconds – more than other satellite-based machine-to-machine (M2M) services in the market.
SkyWave-based solutions include applications, tools and unparalleled customer support designed to quicken time to market and reduce implementation costs.
With competitive hardware and airtime pricing packages, businesses can accurately budget communication costs without roaming charges, and equip fleet and asset management groups regardless of location.
SAMPLE APPLICATIONS
Trailers & Containers: Track the location and temperature of containers and trailers, enhance cargo security and prevent theft.
Railcars: Locate railcars, improve operational efficiency, workflow, asset distribution, and realize cost savings.
Vehicles: Keep track of operational status, fuel levels, driver behaviour and location of valuable cargo.
Vessels & Barges: Enable reliable ship-to-shore communications and use as a vessel safety device with panic button.
Heavy Equipment: Monitor equipment usage and status to detect misuse and enable preventative maintenance.
Overview
SM201226-DXX
FIVE REASONS TO CHOOSE IDP-800
1. NO POWER? NO PROBLEM!
The IDP-800 terminal uses regular or rechargeable batteries or vehicle power. Three year battery life with once a day reporting on main or back-up battery power.
2. TWO-WAY COMMUNICATION

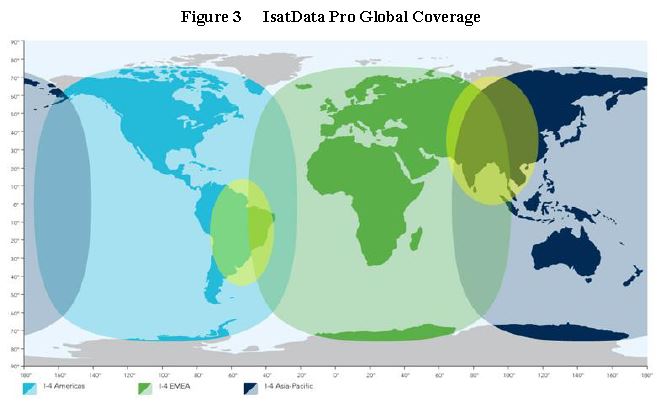

Using the global Inmarsat constellation, with lifetime beyond 2023, IsatData Pro provides messaging capabilities to/from terminal.
3. SAVE ON AIRTIME
Onboard geofencing and accelerometer that detects motion to transmit only when moving, resulting in significant cost savings.
4. SLIM PROFILE DESIGN
Easy installation and slim profile design make it ideal and unobtrusive for tracking and monitoring trailers, trucks, railcars, containers, heavy equipment, vessels and barges.
5. PROTECT CARGO AND DRIVERS
Monitor container doors and hatches to detect theft, prevent hijacking through the use of panic button, power cut detection and GPS jamming.
Track stolen vehicles using GPS location.
Tech Specs
SM201226-DXX
Skywave IDP-800 Battery Terminal, Integrated Antenna, Rechargeable, GPS/GLONASS, Batteries included
SATELLITE COMMUNICATION
• Satellite Service: Two-way, Global, IsatData Pro
• From-Mobile Message: 6,400 bytes
• To-Mobile Message: 10,000 bytes
• Typical Latency: <15 sec, 100 bytes
• Elevation Angle: 20° to 90° (Integrated or remote antenna); -15° to 90° (Low elevation antenna)
• Frequency: Rx: 1525.0 to 1559.0 MHz;, Tx: 1626.5 to 1660.5 MHz
• EIRP: 7.0 dBW
GPS/GLONASS
• Acquisition Time: Hot: 1s; Cold: 29s/30s
• Accuracy: 2.5m/4.0m CEP-Horizontal
• Sensitivity (Tracking): -162 dBm/-158 dBm
CERTIFICATION
• Regulatory: CE (R&TTE, RoHS 2), FCC, IC, Inmarsat Type Approval
• Others: IP67
ELECTRICAL
• Input Voltage: 9 to 32V; Load dump protection: 150V;
- SAE J1455 (Sec. 4.13); Auto Switchover
• Power Consumption (Typical @12V DC, 22°C):
- Average receive: 8.3 mA;
- Receive with GPS/GLONASS: 40 mA; Transmit: 0.75 A;
- Sleep: 100 μA; Power off: 12 μA
• Battery Cells: 12 AA Cells
• Battery Chemistry: Rechargeable: NiMH; Nonrechargeable: LiFeS2
CHARGING
• Current: 1.33 A (at 12V)
MASS
• With batteries: 1.3 Kg (with integrated antenna)
EXTERNAL INTERFACES
• Inputs/Outputs: 3 x Analog or Digital In/Out
• Serial: 1 x RS-232
ENVIRONMENTAL
• Operating Temperature: -40°C to 85°C (batteries not included) ; -40°C to 60°C (Non-rechargeable) ; -10°C to 50°C (Rechargeable)
• Dust & Water Ingress: IP67
• Vibration: SAE J1455 (Sec 4.9.4.2 fig 6-8); MIL-STD-810G (Sec 514.6)
• Shock: MIL-STD-810G (Sec 516.6)
PROGRAMMING
Lua scripting engine with core services. SDK with GUI development tools available. Lua software application upgradable over the air (SOTA).
• User Data Memory: 3.5 MB
• Geofencing: 128 Polygons
• Data Logger: 50,000 Position Reports
• Optional, Configurable Device-Level Applications:
- Analytics Agent - Notifications and reports for driver behaviour and vehicle/asset performance.
- AVL Agent - Faciliates integration of IDP terminals into fleet management solutions.
- Garmin Dispatch Agent - Tracking, navigation, driver communication and dispatch using Garmin devices.
