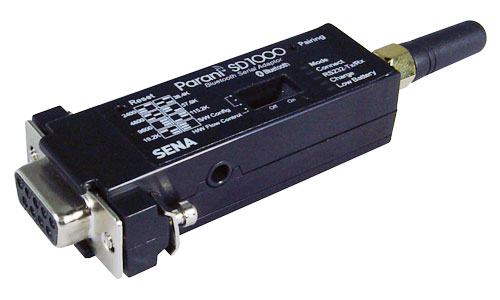

SENA Parani SD1000 Bluetooth Class 1 Serial Adaptor, NO Wall A/C
$95.31
Parani SD1000 is a Bluetooth v2.0 EDR for Serial-Adapter for transparent RS232 cable replacement.
This SD1000-00 pack with all accessories, does NOT include a Wall A/C Power adapter..
Transmit distance can be extended using optional antennas up to 1,000m.
Enhanced portability available via two battery-pack options(NOT included)
The Parani-SD1000 is a Class1 type of Bluetooth Serial Adapter that supports 100 meters of wireless transmit distance by default. The Parani-SD1000 has an extension option so that users can extend the transmit distance up to 1000 meters using optional antennas. It supports Bluetooth v2.0 EDR specification. Parani-SD1000 has two battery-pack options, standard and extended battery pack. By these options, Parani-SD1000’s portability is more enhanced. The Parani-SD1000 also supports up to 4 multiple simultaneous connections.
Overview
Provides transparent RS232 serial cable replacement.
Supports Bluetooth Specification v2.0 EDR 1.2 stack – improved AFH(Adaptive Frequency-Hopping), Fast connection
Supports Bluetooth Serial Port Profile
Interoperability with PDA, laptops etc.
Supports firmware upgrade via windows-based software(ParaniUpdater)
Working distance ( In an open field ): Parani-SD1000: Class 1, Nom. 100 meters, up to 1000m using patch antenna
Software-free configuration support using DIP-Switch and pairing button
Enhanced portability with Optional Battery Packs
No external drivers required
Tech Specs
Go(scroll down) to Reference Table below……
Parani-SD1000
Serial Interface
Serial speed up to 921.6kbps
CTS/RTS flow control, DTR/DSR for loop-back & full transfer
Power input : 5~12VDC Power Consumption : Minimum 2mA, Maximum 80mA
Common Power supply options
Power via a standard AC-plug DC-adapter
Power via USB power cable
Power via DC power cable
Power via pin 9 of DB9 connector
Battery Pack (Standard & Extended)
Environmental
Operating temperature: -20’C to 70’C
Storage temperature: -40’C to 85’C
Humidity: 90% Non-condensing
Physical properties
Dimension(LxWxH): 76 x 31 x 16 (mm) (No battery pack) 76 x 31 x 19.5 (mm) (with standard battery pack) 76 x 31 x 31.4 (mm) (with extended battery pack)
Weight: 24 g (No battery pack) 30 g (with standard battery pack) 42 g (with extended battery pack)
Battery
Capacity
240 mAh(standard) 900 mAh(extended)
Charging Power
minium 5V/200mA
Charging Time
Approximately 2 hours (Standard) Approximately 5 hours (extended)
Battery Life
Test based on 9600 bps data loopback. Actual battery life varies by configuration, operating conditions and other factors – Approximately 4.5 hours (standard) – Approximately 16.5 hours (extended)
