Product Description

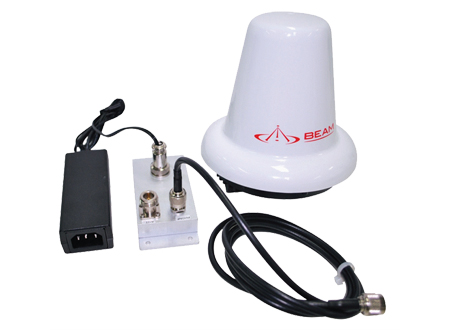

RST740 IRIDIUM by Beam Active Antenna Kit
This Active Antenna is designed for all Marine and Land applications such as large vehicles and Remote Buildings.
Features
. Small size / footprint
. Omni Directional
. Supports longer cable runs
. Pole or Mast Mount
. Iridium Approved
Design
. High quality enclosure
. Active antenna
. Temp range: -40°C to 70°C
. Pole / Mast mounting
. TNC
. White
. Omni Directional
Power
. AC plug pack
. 9-32V DC input
Options – NOT included
RST944 23m cable kit (Active) 5mm diameter
RST945 34m cable kit (Active) 6mm diameter
RST946 52m cable kit (Active) 10mm diameter
Options – Special Order
RST947 75m cable kit (Active): 1pc of L: 69m x Dia: 15mm cable, 2pcs of 3m x 6mm fly leads.
RST948 104m cable kit (Active): 1pc of L: 90m x Dia: 28mm cable, 2pcs of 7m x 6mm fly leads.
DO NOT DAMAGE YOUR ANTENNAAll cable kits include 1.5m lead from device to Antenna Amplifier. Device end connector – TNC Male
Combining an Active Antenna with Standard Cables will damage the Antenna
Compatible with all Iridium Satellite Products by Telstra, Beam, Pivotel, AST SatCom and other 3rd party suppliers
Overview
RST740
. Iridium approved
. Designed for harsh environments
. Small and lightweight
. Weatherable polymer
. Manufactured in the USA
. 12 Month warranty
Tech Specs
RST740 Specifications
Electrical
Power supply requirement 9 to 36V DC, 30W
RF Input power rating(US & Canada): 29 dBm or 0.8 Watt peak(conducted)
EIRP: 12.31 dBW Max
Duty cycle: N/A
DC Peak Power Draw: 30W
DC RMS Power Draw: 3.2W
DC RMS Standby Power Draw: 0.32W
TX Operating frequency range: 1616.0 – 1626.5 MHz
RX Operating frequency range: 1616.0 – 1626.5 MHz
RF Input impedance: 50 Ohms
Modulation: Q7W
Emission designation: 96K1Q7W
Active Antenna Cable Loss: 11.5 – 13.5dB (total end to end loss)
Connector: TNC-Female
Mechanical
Antenna type: Integral
Colour: White
Construction: Weatherable Polymer
Radome Colour: White
Environmental
Storage: -40°C to 80°C
Operational: -25°C to 55°C
Altitude: 20,000ft
Size and Weight
Dimensions without mounting bracket:
Height: 143.8mm(5.66in)
Diameter: 142.5mm(5.61in)
Antenna Weight: 0.9Kg or (1.98lb)
Options – NOT included
RST944 23m cable kit (Active) 5mm diameter
RST945 34m cable kit (Active) 6mm diameter
RST946 52m cable kit (Active) 10mm diameter
Options – Special Order
RST947 75m cable kit (Active): 1pc of L: 69m x Dia: 15mm cable, 2pcs of 3m x 6mm fly leads.
RST948 104m cable kit (Active): 1pc of L: 90m x Dia: 28mm cable, 2pcs of 7m x 6mm fly leads.
DO NOT DAMAGE YOUR ANTENNAAll cable kits include 1.5m lead from device to Antenna Amplifier. Device end connector – TNC Male
Combining an Active Antenna with Standard Cables will damage the Antenna
