$284.05
Ethernet I/O device that enables remote monitoring and control of input output devices. Provides standard interface for high performance industrial applications including remote data acquisition, automated machine monitoring, industrial instrumentation, discrete control, security and access control and distributed data acquisition system.

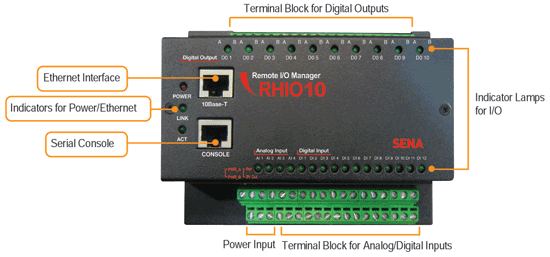

The Rhio10 is an Ethernet I/O device server that enables remote monitoring and control of input output devices over the network. The Rhio10 device server provides standard interface for high performance industrial applications including remote data acquisition, automated machine monitoring, industrial instrumentation, discrete control, security and access control and distributed data acquisition system.
Supports 10Base-T Ethernet network connection
12 optically isolated digital inputs (0 ~ ±24V)
10 digital relay outputs, Max. 220V level
4 channel 10-bit resolution analog inputs for basic data acquisition
Basic programmable logic output functions such as AND, OR, NOT and Delay
Reliable TCP/IP protocol stack.
Supports DIN-Rail mount
Management using easy-to-use Windows utility
Windows DLL support for the easier integration with user program
See Reference Table Below………
| RHIO10 | Network Interface | 10 Base-T Ethernet with RJ45 connector | Supports static and dynamic IP address | Digital Input |
Number of channels: 12 | Digital Output |
Number of channels: 10 | Analog Input |
Number of channels: 4 | Protocols |
ARP, IP/ICMP, TCP | Management |
Rhio Manager Windows Utility, Serial Console or Telnet | Software Support |
Windows MFC DLL library | Diagnostic LED |
Power, Link, Act | Power | 9V ~ 48VDC, Max. 5W | Environmental | Operating temperature: 0’C to 50’C Storage temperature: -20’C to 66’C Humidity: 90% Non-condensing | Physical Properties | Dimension (LxWxH) 137 x 111 x 58 (mm) 5.4 x 4.4 x 2.3 ( in.) | Weight: 730g | MTBF | 34.51 Years | Certification | FCC (A), CE, MIC | Warranty | 5-year limited warranty |
