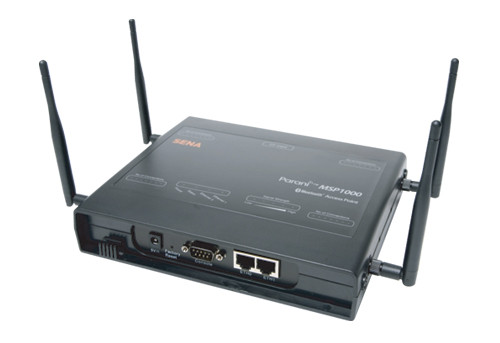

SENA Parani MSP1000C Bluetooth Access Point, 28 connections support, AU,NZ
$1,090.00
MSP1000C-03*
*This pack comes with a Wall A/C power adapter for AU/NZ use
The Parani MSP1000 series is an Industrial Bluetooth Access Point product line designed to connect up to 28 Bluetooth devices to the 10/100 Base-T Ethernet network with advanced features.
These Bluetooth Access Points transmit data from each Bluetooth terminal to management station via TCP/IP.
The Parani MSP1000C is an Industrial Bluetooth Access Point product designed to connect Bluetooth devices to the 10/100 Base-T Ethernet network with advanced features. These Bluetooth Access Points transmit data from each Bluetooth terminal to management station via TCP/IP.
This 28 Bluetooth connection model, the Parani-MSP1000B Bluetooth Access Point incorporates Bluetooth 2.0 Protocol Stack with Enhanced Data Rate (EDR) support; and transmits data from each Bluetooth terminal to management station via TCP/IP.
These units’ support profiles including Serial port, LAN access, PAN and FTP profiles to keep Bluetooth devices interoperating smoothly and easily.
Overview
Connects Bluetooth devices to 10/100 base-T Ethernet.
Dual Ethernet Interface support
Supports Up to 3Mbps throughput
Ideal wireless solution for the replacement of the wired multi-port serial card.
28 Bluetooth Connections support
Supports Bluetooth profiles for Serial Port, LAN Access, PAN, File Transfer and Dial up Networking.
Easy-to-use COM-Port redirector support
Flexible TCP/UDP host mode support: Multiple host connection/data transfer
System logging & port logging
Supports Python Script Engine for customization
Supports firmware upgrade via web, hyper terminal program or etc.
Supports surge protector
Supports RFC 2217, Telnet COM Port Control Protocol.
Tech Specs
Go(scroll down) to Reference Table below………
Parani-MSP1000C
CPU
Freescale PowerQUICC MPC880
DRAM
64 MB
Flash
16 MB ( 2 MB of user programmable space )
Ethernet Interface
Dual 10/100 Base-T Ethernet with RJ45 connector
Supports Static IP and Dynamic IP address
Bluetooth Interface
Bluetooth v2.0 EDR Class 1 Profiles – Serial Port, LAN Access, PAN, Dial up Networking, File Transfer Date Rate – up to 3Mbps
Stub(Dafault) Antenna DAT-G01R Antenna DAT5-G01R Antenna PAT-G01R Antenna DAT5-G01R Antenna PAT-G01R Antenna PAT-G01R Antenna
up to 150m up to 200m up to 300m up to 500m up to 400m up to 600m up to 1000m
