Product Description
HN-00-3500059-1-M2M INMARSAT by Hughes 9201-M2M Permanent Fixed Broadband Satellite BGAN IP SCADA Terminal
The Hughes 9201 is configured for M2M (Machine to Machine) use by creating a persistent network connection, ideal for unmanned remote operations where any IP capable device (Such as SCADA devices) needs to be monitored or controlled.
Most BGAN terminals are not capable of a persistent connection, so idle connections drop after several minutes of non-use.
The Hughes 9201 keeps a persistent 12 hour connection. New sessions are easily started by remote command, reboot or other method making it the perfect fixed location manned/unmanned communications point for data over Internet or any other application.
IP SCADA ready
Ideal for the oil, gas, and utility industries, the Hughes 9201-M2M can be readily packaged for continuous monitoring and control of remote sites, such as well automation, pipeline monitoring, utility SmartMeter backhaul, and backup to VSAT networks.
Easy to set up, the robust Hughes 9201-M2M provides connectivity in minutes and is built to operate in extreme weather conditions.
Compact and versatile, the single-box Hughes 9201-M2M is a highly secure, cost effective and “always on” SCADA solution for a wide range of traffic sites handling kilobytes, megabytes or even gigabytes of data.
HIGHLIGHTS
► Full IP compatibility—SMTP email, file transfer (FTP), and VPN
► Global public fixed IP available
► Cost-effective, “always-on” access—only charged for data sent
and received
► Web MMI is accessible via Wi-Fi enabled smart phones
► Auto context activation feature allows PDP contexts to be
activated without user action
► Easy to install and connects in minutes
► UMTS IP-based services
► FCC, CE, and GMPCS certified
OPTIONAL Accessories – NOT Included
Part# HN-01-9501286-1 Hughes Bgan External Antenna (9201)
Part# HN-01-3004066-1 Hughes Bgan Fixed Mount Kit (Includes Cable)
Solar Compatible
Requires 55–60 W solar panel plus DC/DC power adapter to input 20 V to the 9201-M2M terminal
Overview
HN-00-3500059-1-M2M INMARSAT by Hughes 9201-M2M Permanent Fixed Broadband Satellite BGAN IP SCADA Terminal

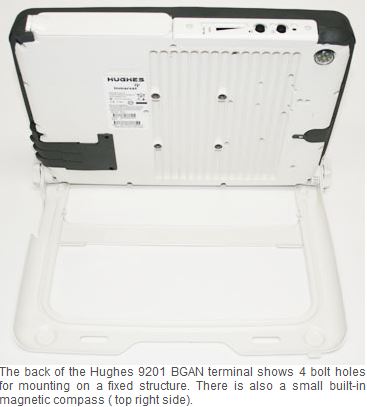

Easy install hardware. Simply affix to any pole.
Instant On Communication.
The Hughes 9201 uses Standard BGAN Service and not the new BGAN M2M Service
The Hughes 9201 can use the new high-usage cost BGAN Link Service
Auto context activation features allow PDP contexts to be activated without user action.
Charged only for the data transferred
BGAN Service Plans can pool multiple BGAN units under the same account
Operates in extreme climates -14°F to 140°F (-25˚ C to 60˚ C).
The 9201 uses very low power (3.74 watts in idle mode. 36 hours on internal battery).
It easily survives in severe winds that would misaligned a satellite dish.
It operates on the “L band”, and has almost no rain fade issues.
It will operate with up to 25mm of ice before transmission issues.
The integrated Auto-On and Auto-Power Cycle is excellent for resolving remote errors.
It has a low profile (the enclosure is a junction box) so it may reduce theft or vandalism.
If runs indefinitely if power source is available, (via AC or DC 12V adapter or solar).
The Hughes 9201 works globally (except for the poles) for up to 492kbps up/down speeds.
Full IP compatibility – Internet, SMTP email, file transfer (FTP, and VPN).
Global public (static) IP addresses are available.
Wi-Fi enabled terminal accessible via wireless G from laptops or smartphones.
UMTS IP-based services.
VPN compatible Cisco–VPN Client V1 or V2.6.3, Nortel–Contivity VPN Client V04-15.06,
Netscreen– Remote Client 8.1, Checkpoint–V4.1, SonicWall.
Many devices (such as SCADA sensors) are very low data intensive, or can be configured
so as to save on BGAN service fees. Also since remote configuration from headquarters are
easily performed, changes are made as needed.
