Overview
Features
Output Interface UART, Compliant Bluetooth Specification v1.2- improved AFH(Adaptive Frequency Hoping), Fast connection
Transmit Power – ESD200/210 : Max. 4dBm
Receiving Sensitivity – ESD200/210 : -80dBm(0.1¾R)
Compact size – ESD200/210: 18 x 20 x 11.7 (mm)
Provides transparent RS232 serial cable replacement.
Supports Bluetooth Serial Port Profile.
Interoperability with PDA, laptops etc.

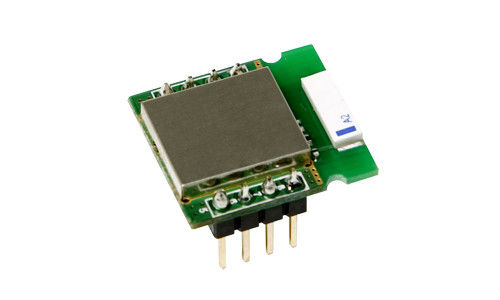

Built-in On-board antenna included
Supports firmware upgrade via windows-based software(ParaniUpdater)
Working distance ( In an open field ):
Parani-ESD200: Class 2, Nom. 30meters
Parani-ESD210: Class 2, Nom. 30meters, up to 300m using patch antenna
Easy to use Windows configuration tool available.
No external drivers required.
