Product Description
CA15959050-STD
Supports Inmarsat IsatPhone PRO Satellite Telephone ONLY
Applications and Benefits
Internal In-vehicle purpose built IsatPhone PRO Holder Adapter
Features Integrated Antenna adapter and cable adapters for fast deployment.
Mounting Profile
Approx 30deg angle(NOT parallel, but upwards/downwards, left or right ONLY)
Suction Cup Base.
.Plastic bracket of 102mm(4.0in) maximum length from base

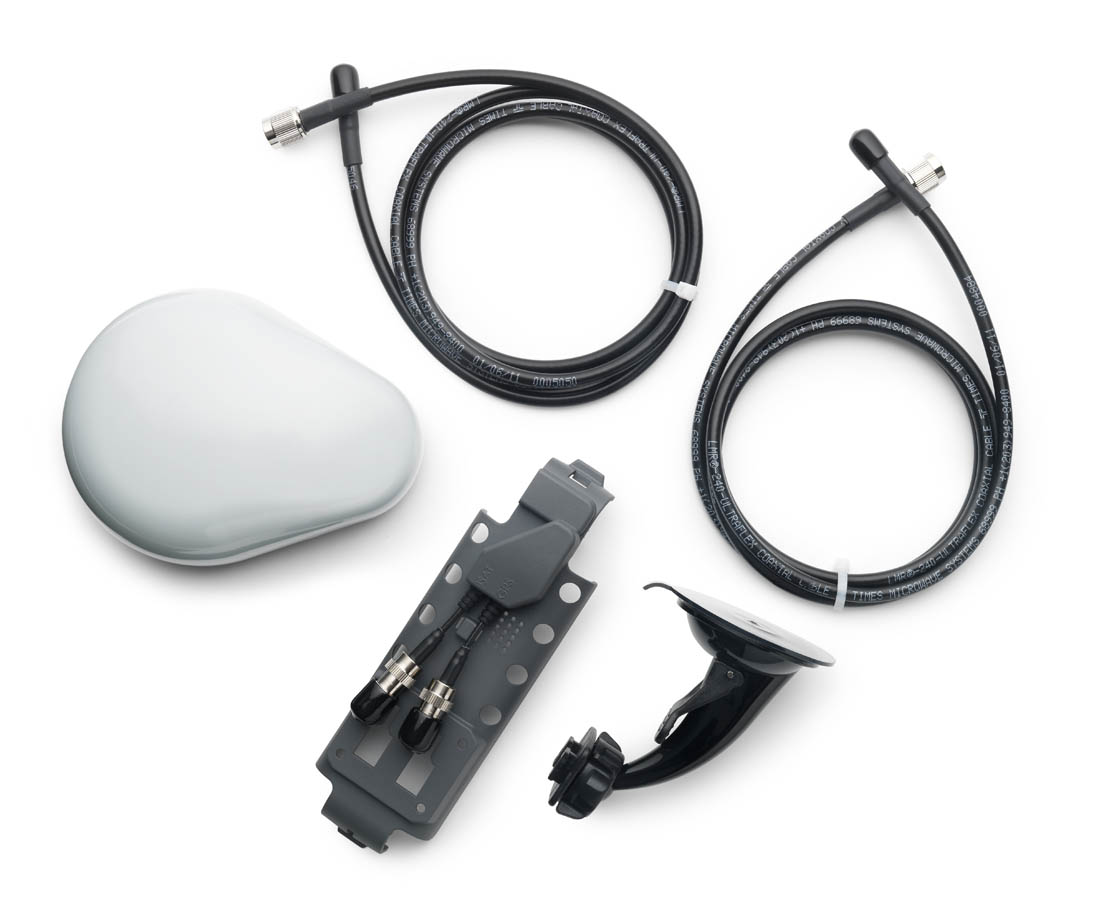

IsatPhone PRO Holder Adapter Basics:
Securely holds the IsatPhone PRO Handset with retaining clips.
Interfaces with the recessed antenna connectors behind cover panel on the back of your SatPhone.
Features integrated antenna adapters to support connection of your external antenna cables
HOLDER ADAPTER – Moulded to suit IsatPhone PRO SatPhone ONLY
SatPhone Connectors: 2x 30mm(1.2in) long protruding perpendicular from upper cradle base.
SAT Cable Connector: 1x TNC-Female with 37mm(1.5in) cable tail
GPS Cable Connector: 1x TNC-Female with 37mm(1.5in) cable tail
Long: 180mm(7.2in)
Wide: 55mm(2.3in)
Deep: 47mm(1.8in)
Weight: 74g(2.6oz)
STANDARD PLASTIC MOUNT
Maximum Distance from surface: 102mm(4.0in) at approx. 30deg, swivel does not allow for perpendicular.
Suction Cup Diameter: 60mm(2.4in)
Weight: 50g(1.7oz)
OVERALL WEIGHT
Weight: 126g(4.4oz)
Shipping Weight AU: 300g
Shipping Weight INTL: 500g
