Product Description
BCP201900 BARRETT 2019 Auto tune mobile antenna
Due to its rugged RF design, the Barrett 2019 antenna can also be used with high duty cycle applications such as the Barrett 2020 email, fax and data system and is fully compatible with ALE operation.
Stainless Steel anti-vibration mount
Heavy Duty Stainless Steel Spring
Stainless Steel Connector Plate
Waterproof, UV, High Impact resistant composite moulding.
Mounting shaft pre-drilled for anti-theft padlock
Includes 2pce standard whip kit(2x 805mm whips) total length of antenna is 2440mm
Optional NVIS extended whip available(2x 805mm whips) total length of antenna then 4040mm
The 2019 provides frequency coverage of 2 MHz to 30 MHz with a rapid tuning time of typically less that 1.5 S.
The integrated GPS Receiver(part# BCA201902) is NOT included in this pack
Overview
BCP201900
The Barrett 2019 is an automatic tuning mobile antenna, designed to interface with Barrett 2000 series transceivers.
Providing a frequency coverage of 2 MHz to 30 MHz, the Barrett 2019 features rapid tuning (typically <1.5 S) and low power consumption. High radiation efficiency and accurate tuning are assured by maximising antenna current (not minimising the VSWR) on every tune.
The Barrett 2019 antenna incorporates a wideband amplifier that is activated in receive mode to enable channel scanning. Due to its rugged RF design, the Barrett 2019 antenna can also be used with high duty cycle applications such as the Barrett 923 or 2020 fax and data system and is compatible with ALE operation.
An optional GPS receiver can be fitted within the 2019 antenna casing and interfaces directly through the RF control cable to current production 2050 transceivers.
The active tuning elements of the antenna are housed in black waterproof, highly impact resistant technical plastic moulding.
The housing incorporates a heavy duty
anti-vibration mount at its base.
The Barrett 2019 is supplied standard with a two piece fibreglass MIL-STD whip and a tapered spring.
The main antenna body has a MIL-STD control cable connector and a UHF RF connector.
The 2019 is supplied with a 6 metre composite control and RF cable and connectors to connect it with the transceiver.
Optional Accessories available but NOT included in this pack
Part# BCA201902 – Integrated GPS Receiver supplied integrated / fitted within the casing of the antenna
Part# BCA201900 – 2x 805mm/ea optional NVIS extension is available in the form of two extra whip sections.
Part# BCA201905 – 1x 10 metre control RF cable(NOT included) is available.
part# BCA201906 – 1x Spare spring(tapered, black)
Tech Specs
BCP201900
The integrated GPS Receiver(part# BCA201902) is NOT included in this pack
SPECIFICATIONS
Antenna Body

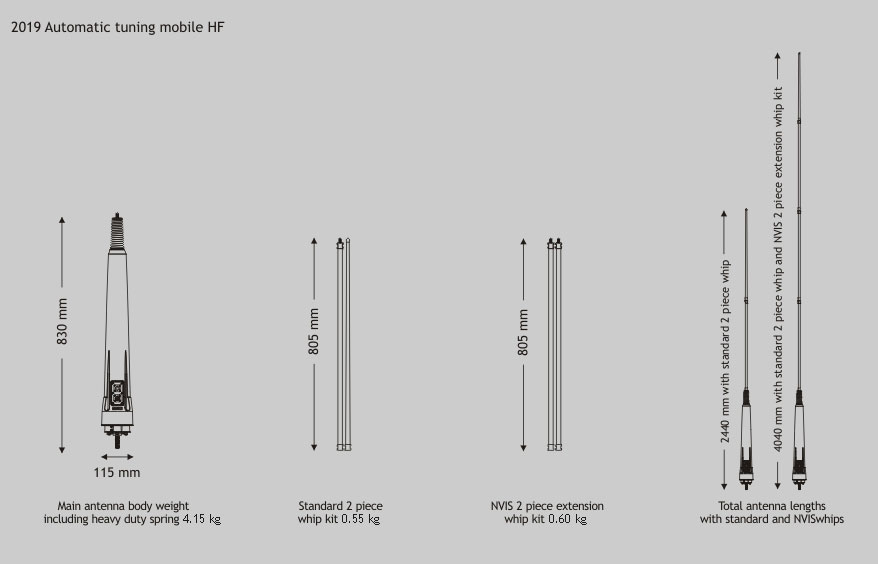

Dimensions: 115mm Diameter x 830mm High
Weight: 4.15kg
Standard Whips
Dimensions: 805mm/each(2pcs)
Weight: 0.55kg
Total Antenna Weight: 4.15 0.50 = 4.65kg
Antenna Total Length – Standard: 830 805 805=2440mm
OPTIONAL NVIS EXTENDED WHIP KIT(Not included in this pack)
Dimensions: 805mm/each(2pcs)
Weight: 0.60kg
Antenna Total Weight: 4.15 0.50 0.60 = 5.25kg
Antenna Total Length – with Extended Whips: 830 805 805 805 805=4040mm
General
Standards: Complies with MIL-STD 810G for drop, dust, temperature, shock and vibration
Frequency range: 2 MHz to 30 MHz (continuous)
Power handling capability: 150 W PEP
VSWR: Better than 2:1 when tuned
Tuning time: Less than 1.5 seconds (typical)
Operating temperature: -30°C to 60°C
Humidity: 95% relative, non-condensing
Environmental: IP67 immersion 1m for 1hr
Supply voltage: 12.6 V DC (derived from transceiver)
Antenna impedance: 50 ohm unbalanced
Mounting: M16 stud with provision for padlock
Input current: Average 80 mA @ 12.6 V input
Shock: MIL-STD 810G Method 516.6
Vibration: MIL-STD 810G Method 514.6
Optional Accessories available but NOT included in this pack
Part# BCA201902 – Integrated GPS Receiver supplied integrated / fitted within the casing of the antenna
Part# BCA201900 – 2x 805mm/ea optional NVIS extension is available in the form of two extra whip sections.
Part# BCA201905 – 1x 10 metre control RF cable(NOT included) is available.
part# BCA201906 – 1x Spare spring(tapered, black)
